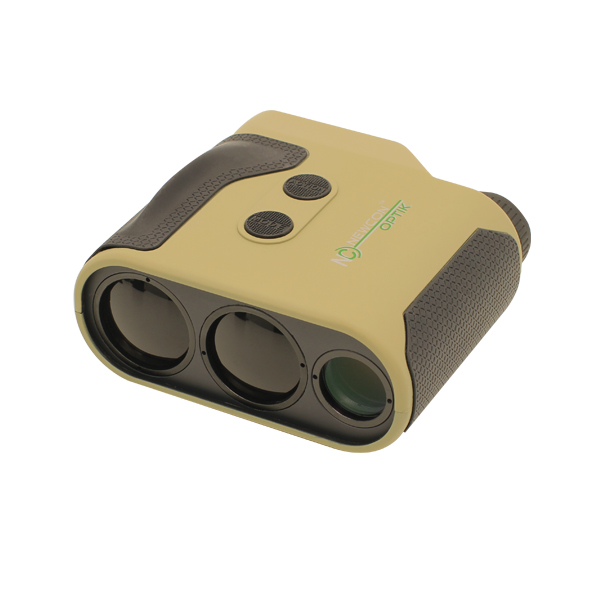

LRM 2200SI

NSN#: 1240-20-009-0287

The LRM 2200SI combines excellent 7x optics with the world’s most advanced laser rangefinder technology. Revised approaches in optical and electronic engineering allow target acquisition at longer distances with better reliability under a wider range of weather conditions.

This model allows observation of distant objects with superb image quality plus it measures the distance to the object up to 2,200 meters (output display in yards also).

The LRM 2200SI has a built-in inclinometer to measure the angle to the object, as well as speed detecting capability. Aim and click – and you have everything you want about your target. Compatible with our new NC Cronus app.



This device is compatible with:

Bluetooth™             NC Cronus™

2,200 meter range
Elevation measuring ability
Speed measuring ability
Lightweight design
Easy to use
Optics
Magnification (x) 7
Objective lens diameter (mm) 25
Field of view (°) 8
Eye relief (mm) 15
Diopter adjustment range ±4
Rangefinder

Eye safety

Class 1, eye-safe

Wavelength (nm)

905

Measuring distance range (m)*

10 – 2,200

Distance measurement accuracy (m) ±1
Azimuth measurement accuracy (°/mils) ±2 / 35
Inclination measurement accuracy (°/mils) ±1 / 17.5

Speed detection

Yes

First/last target logic

Yes

Scan mode Yes
Display TOLED

Meters/yards display

Yes

Computer output, type

None

Last 10 readings recall Yes

Reticle pattern selection

Yes

Target quality indicator Yes

Low battery indicator

Yes

Mechanics, Electronics & Environmental

Dimensions (mm)

127x125x60

Weight without batteries (g)

445

Power Supply

1x 9V non-magnetic

Battery life (# of measurements)

5,000

Operating temperature range (°C)

-25 to +50

Storage temperature range (°C)

-45 to +65

Waterproofing

IP66
