Can detect objects at remote distances 24 hours a day |
Laser rangefinder & digital compass |
![Sentinel-ODS-Main-1 Sentinel-ODS-Main-1](http://www.newcon-optik.com/wp-content/uploads/2024/08/Sentinel-ODS-Main-1.jpg)

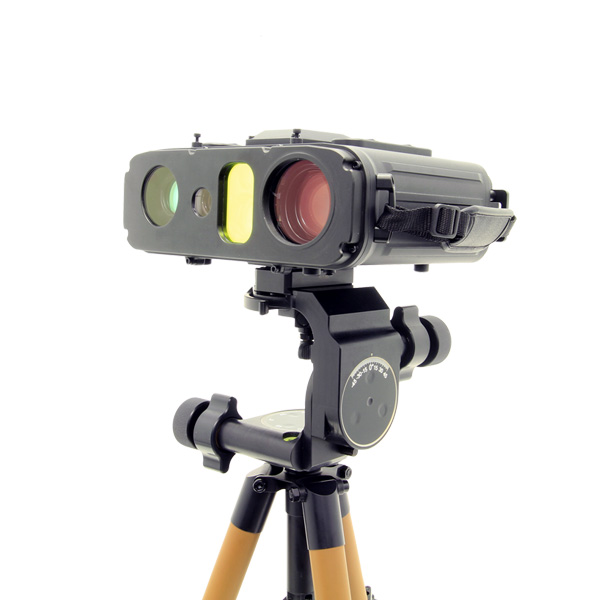

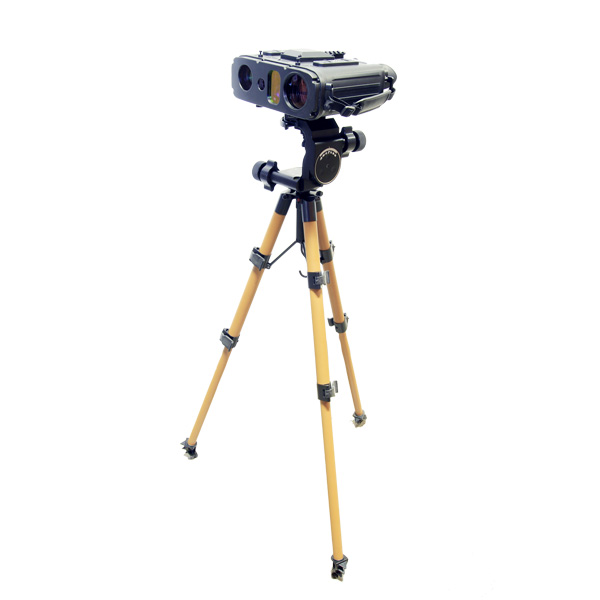

The Sentinel ODS detects snipers and other forward observers before they fire a shot. While most sniper detection systems are acoustic and help operators respond to a threat after it has already inflicted damage, the Sentinel ODS functions on optical principles and can therefore pinpoint the location of a threat before it has a chance to act. This system is ideal for border and perimeter security as well as VIP protection details. The Sentinel ODS detects lenses and reflectors in its line of site even if these objects are covered behind bushes, windows or windshields. The device can be handheld or mounted on a tripod and when an optical reflector of any kind is detected, its position is marked in field of view. For added situational awareness, an audio signal can also be set to automatically activate upon the detection of a threat. The Sentinel ODS can reliably detect snipers and other optical equipment in a variety of tactical situations.
Can detect objects at remote distances 24 hours a day |
Laser rangefinder & digital compass |
Optical parameters | |
Objective lens focal distance, mm |
6-130 |
CCD resolution, pixels |
1920×1080 |
Video output refresh rate, Hz |
50 |
Field of view, degrees |
61.04° x 36.89° to 2.36° x 1.33° |
Magnification |
continuous zoom from 1x to 30x |
Display resolution, pixels |
1024 x 768 OLED |
Diopter adjustment of the eyepiece |
± 4 |
Infrared sensors |
|
Detector type |
Vox |
Resolution (pixels) |
640×512 |
Spectrum (µm) |
8-14 |
Pixel Pitch (μm) |
12 |
NETD (mK) @F1.0 |
<40 |
Frequency (Hz) |
50 |
Objective Focal Length (mm) |
50 @F1.0 |
Field of View (°) |
8.8 x 7.0 |
Non-uniformity correction |
Auto |
Detection/Recognition of tank target (km) |
6.3/1.6 |
Detection/ Recognition of human target (km) |
2.3/0.6 |
Zoom |
1-4x |
Detection parameters |
|
Maximum detection range, 7×50 weapon sight (m) |
2,500 |
Minimum detection distance of the optical objects, m | 100 |
Angular size of the detection zone, degrees |
0.8° x 72° (Horizontal field of view) |
Maximum horizontal scanning speed, degrees/sec |
30 (with optional PTZ) |
LRF |
|
Laser type |
Solid Sate, Class I |
Laser wavelength (μm) |
1,535 |
Detection range (m) |
20 – 10,000 |
Ranging accuracy (m) |
±2 |
Laser Emitter | |
Wavelength |
808nm+-5nm |
Light angle |
0.8 degree to 72 degree |
Laser power |
>=10W |
Laser Dazzler | |
Wavelength |
515 to 520nm |
Power |
>=960KW |
Spot size |
Min 20cm; Max 12m |
Compass | |
Measured azimuth range |
360° |
Accuracy |
±1.0° RMS at level |
Inclinometer | |
Measured elevation range |
±80° |
Accuracy |
±1.0° RMS (within ±80°) |
Capabilities |
|
Target global position calculation |
Yes |
Global position sensor |
GNSS |
Electrical parameters | |
Voltage range |
6-12VDC |
External power supply voltage | 6-12VDC |
Power supply | 4x 18650 |
Battery life continuous operation, min, hours | 4 |
Video output, type | PAL |
Environmental parameters |
|
Tripod mount |
Present, ¼” |
Dimensions, mm |
204x160x83 |
Weight, kg |
2.3 |
Operating temperature range (°C) |
-40 to +60 |
Storage temperature range (°C) |
-40 to +60 |
Relative humidity | ≤ 98 % under + 25° |
Waterproofing | IP67 |
