High-resolution uncooled thermal sensor |
Can detect objects at remote distances 24 hours a day |
Laser rangefinder & digital compass |
![Sentinel-MLRF-Main Sentinel-MLRF-Main](http://www.newcon-optik.com/wp-content/uploads/2019/11/Sentinel-MLRF-Main-1.jpg)
The SENTINEL SMLRF is the most effective handheld multi-functional thermal laser rangefinder binocular available. It serves a wide variety of tactical, law enforcement, border security and special forces applications. SENTINEL SMLRF binoculars use a high-resolution uncooled thermal sensors to perceive differences in the thermal signature of objects within the field of view. The unit can detect objects at remote distances 24 hours a day, through smoke, fog or camouflage. The unit’s eye-safe laser rangefinder and digital magnetic compass instantly measure distance, azimuth and inclination of far-off targets. Data is displayed inside the field of view and can be exported via the computer output to a variety of peripheral devices.
High-resolution uncooled thermal sensor |
Can detect objects at remote distances 24 hours a day |
Laser rangefinder & digital compass |
Infrared sensors |
|
Detector type |
Vox |
Resolution (pixels) |
640×512 |
Spectrum (µm) |
8 – 14 |
NETD (mK @F1.0) |
<40 |
Frequency (Hz) |
50 |
Objective Focal Length (mm) |
50 @F1.0 |
Field of View (°) |
8.8 x 7.0 |
Non-uniformity correction |
Auto |
Detection/Recognition of tank target (km) |
6.3/1.6 |
Detection/ Recognition of human target (km) |
2.3/0.6 |
Zoom |
1-4x |
SWIR |
|
Objective Focal Length (mm) |
50 |
Resolution (pixels) | 640×512 |
Frequency (Hz) | 50 |
Field of View (°) |
8.8 x 7 |
Zoom |
1-4x |
Spectrum (μm) |
0.9 – 1.7 |
LRF |
|
Laser type |
Semiconductor laser, Class I |
Laser wavelength (μm) |
1,550 |
Detection range (m) |
20 – 5,000, ( 20 – 10,000 Optional) |
Ranging accuracy (m) |
±2 |
GPS |
|
Type |
GPS, Galileo (GNSS) |
Target locating error |
±5M (target<1km) |
Format |
Lat/Long and MGRS |
Fusion | |
Combing day and thermal image |
Yes |
Fusion modes | At least 3 modes of image combining |
Magnetic compass |
|
Azimuth resolution/accuracy |
1°/ 1° |
Elevation resolution/accuracy |
1°/ 1° |
Elevation range | +/- 80° |
Mechanics & Environmental |
|

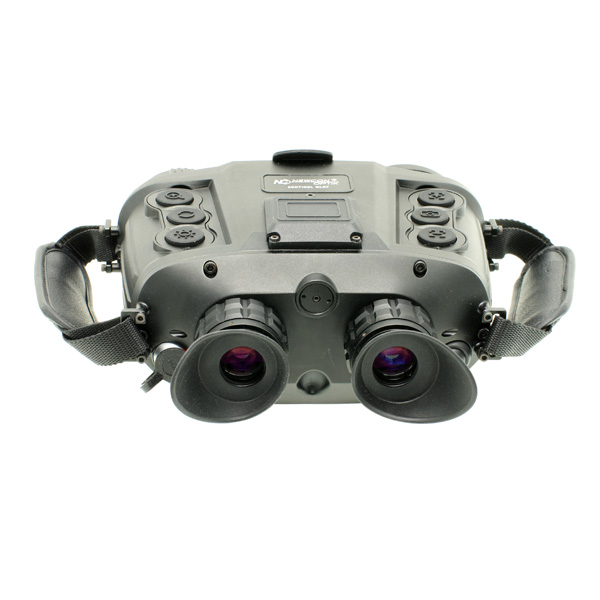

Interpupillary distance (mm) |
64 |
Eyepiece diopter adjustment (dpt) |
±5 |
Internal video & photo recording |
Yes |
Connectivity |
Power input, RS232 (remote control), USB (output videos and images), PAL video |
Continuous working time (hours) |
4 |
Dimensions with eyepiece (mm) |
170 x 210 x90 |
Weight without battery (kg) |
Max 2kg |
Power |
Internal battery: rechargeable 4×18650, DC power supply 12VDC |
Temperature range (°C) |
-30 to +60 |
Storage temperature range (°C) |
-35 to +65 |
Waterproof | MIL STD 810 (1m for 30 min) |
Mechanical interface/mounts |

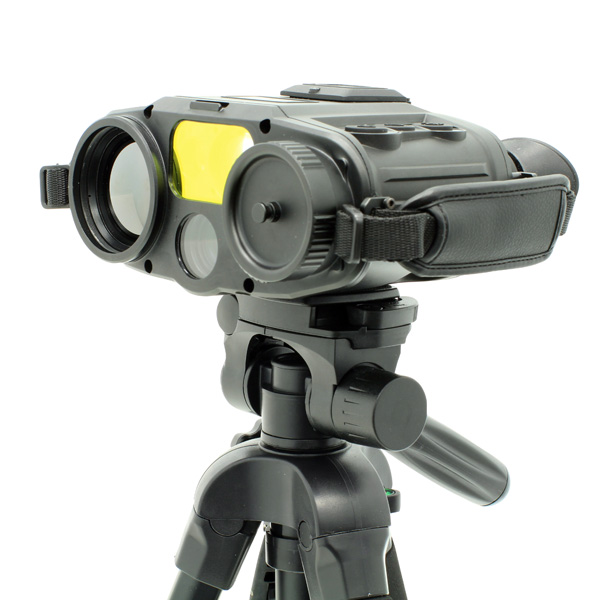

1/4′ tripod mount |
