Can detect objects at remote distances 24 hours a day |
Laser rangefinder & digital compass |
![Sentinel-UMLRF-1Main Sentinel-UMLRF-1Main](http://www.newcon-optik.com/wp-content/uploads/2024/08/Sentinel-UMLRF-1Main.jpg)

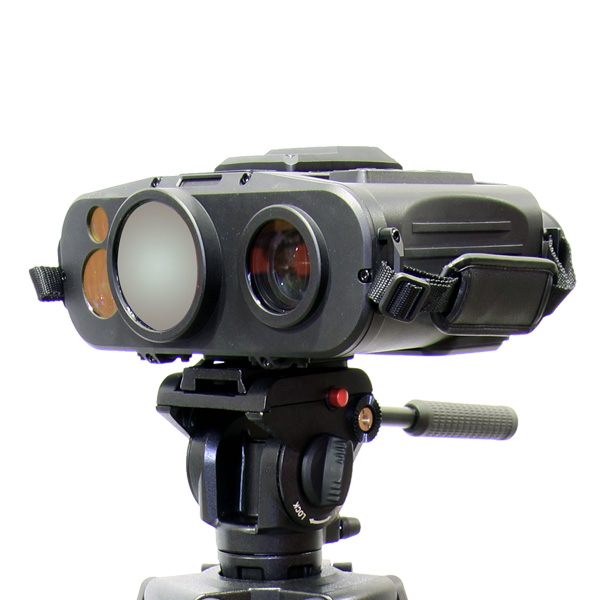

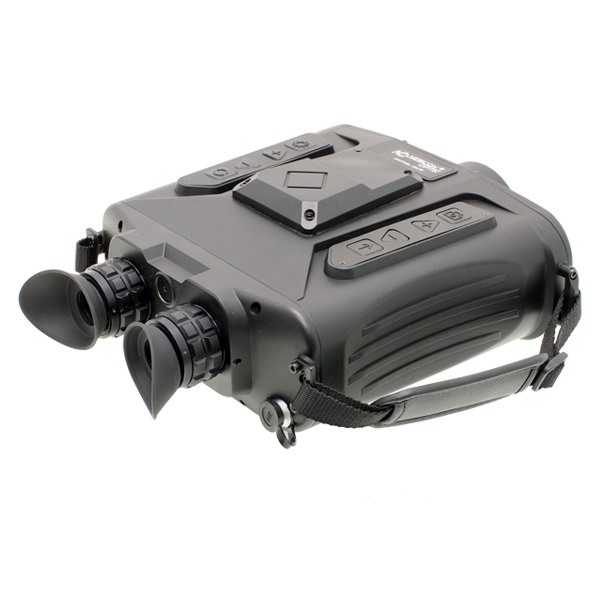

The SENTINEL UMLRF is the most effective cooled handheld multi-functional thermal laser rangefinder binocular available. It serves a wide variety of tactical, law enforcement, border security and special forces applications. SENTINEL UMLRF binoculars use a high-resolution cooled thermal sensor to perceive differences in the thermal signature of objects within the field of view. The unit can detect objects at remote distances 24 hours a day, through smoke, fog or camouflage. The unit’s eye-safe laser rangefinder and digital magnetic compass instantly measure distance, azimuth and inclination of far-off targets. Data is displayed inside the field of view and can be exported via the computer output to a variety of peripheral devices.
Can detect objects at remote distances 24 hours a day |
Laser rangefinder & digital compass |
Infrared sensors |
|
Detector type |
MCT Cooled |
Resolution (pixels) |
640×512 |
Spectrum (µm) |
3 to 5 |
Pixel Pitch (μm) |
15 |
NETD (mk) |
<25 |
MRTD (k) |
≤0.2 |
Objective Focal Length (mm) |
30 to 240/F4 |
Field of View (°) |
18.2×14.6 to 2.3×1.8 (±5%) |
Human Detection (km) |
> 6.0 |
Human Recognition (km) |
> 3.0 |
Vehicle Detection (km) |
> 9.0 |
Vehicle Recognition (km) |
> 5.0 |
Zoom |
1-8x |
Daytime Channel |
|
Sensor |
1/2″ CMOS |
Resolution | 1920×1080 |
Focal Length (mm) |
6 to 216 |
Field of view (°) |
W: 60 to 233 T: 2.4 to 1.2 |
Zoom |
36x |
Functionality |
|
Gain/Brightness |
Manual/Auto |
Calibration |
Auto calibration when camera startup |
Image enhancement |
Yes |
Image Filter |
Yes |
Polarity |
Hot black/Hot white |
Focus |
Motorized |
Storage function |
64GB Built-in card (bmp & AVI) |
Storage capacity |
Image : ≥ 10000 , Video : ≥ 4 hours |
Positioning system |
|
Type |
GNSS |
Accuracy (RMS) |
Lng & Lat: 5m , Elevation: 10m |
Target location |
Yes |
Digital Compass | |
Horizontal range (°) |
360 |
Pitching (°) | ± 40 |
Angle accuracy (RMS) | Azimuth: 0.6° , Pitch angle : 0.5° |
Laser Range Finder |
|
Laser Band (nm) |
1535 eye-safe |
Ranging |
50m~8km |
Accuracy |
≤2m (Target > 50m) |
Accurate probability |
≥98% |
Frequency | 1 Hz |
Environmental Protection |
|
Working Temperature (°C) |
-40 to +60 |
Storage Temperature (°C) |
-40 to +65 |
Protection class |
IP67 |
Power |
|
Type |
Rechargeable Li-ion Battery |
Working time |
> 5 hours (@25°C) |
Physical Parameters |
|
Display mode |
OLED |
Resolution |
1024×768 |
Eyepiece diopter |
-4 to +4 |
Weight (kg) | ≤2.8 |
Dimension (mm) | 360x230x115 |
External Power | Yes |
Video output | PAL |
Data transmission | USB |
WIFI | Built-in |
Communication port | RS232 |
Tripod Interface |
1/4″ |
