| Battle ready |
| Superior optics |
| Easy to use |

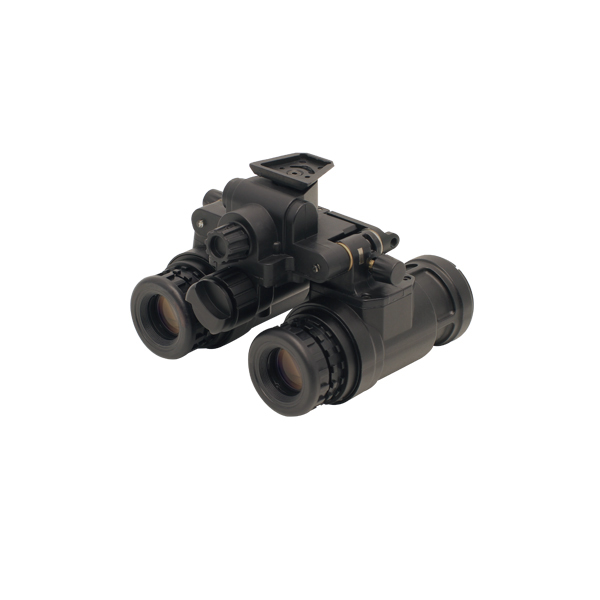

The NVS 15-M night vision goggles has been proven by deployments in conflict zones and by peacekeepers around the world. NVS 15-M utilize two advanced Gen 3 image intensifier tubes; with minimum, exportable FOM >1600, built-in IR illuminator, and auto shutoff mechanism; and are fully MIL-SPEC.
The NVS 15-M provides users with full depth perception, and is ideal for vehicle operation and any other dark-environment task requiring acute situational awareness.
| Battle ready |
| Superior optics |
| Easy to use |
|
IIT |
|
|
Generation |
3 |
|
Photocathode material |
GaAs |
|
IIT resolution, minimum (lp/mm) |
64 |
|
Signal to noise ratio, minimum |
25 |
|
Auto-gating |
Yes |
|
Auto-gating with black & white phosphor |
Optional |
|
Optics |
|
|
Magnification (x) |
1 |
|
Field of view (°) |
50±2 |
|
Objective F# |
1.18 |
|
Objective focal length (mm) |
22.5 |
|
Focus range (m) |
0.25 – ∞ |
|
Eye relief (mm) |
30 |
|
Diopter adjustment range |
-6 to +4 |
|
Mechanics, Electronics & Environmental |
|
|
Dimensions (mm) |
115x105x81 |
|
Weight without batteries (g) |
516 |
|
Interpupillary distance (mm) |
50 – 80 |
|
Flip up |
Yes |
|
Flip to side |
Yes |
|
Built-in IR illuminator |
Yes |
|
Battery type |
2x CR123 |
|
Battery life (hours) |
40 |
|
Startup time (seconds) |
<1 |
|
Auto shutoff |
Yes |
|
Operating temperature range (°C) |
-40 to +55 |
|
Storage temperature range (°C) |
-40 to +60 |
|
Humidity |
up to 95% non-condensing |
| Waterproofing, standard | IP67 (1m 30min) |
| Waterproofing, optional | 66 ft (20m) – 2h |
