| Battle ready |
| Superior optics |
| Easy to use |
| Long battery life |
| Auto-Gated Intensifier Tube |

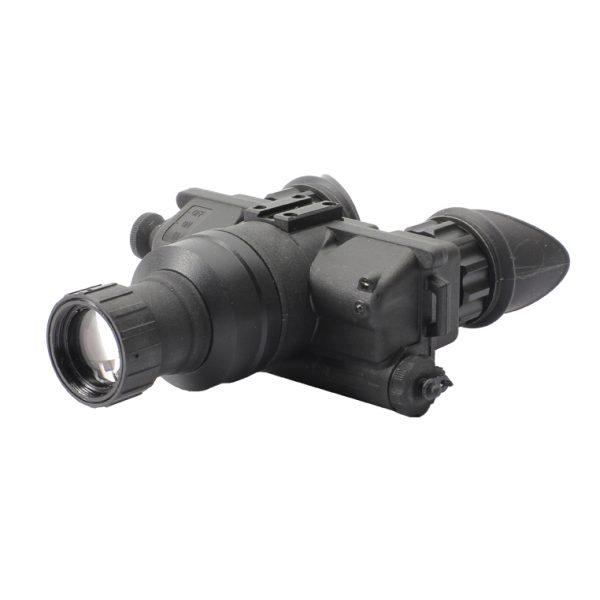

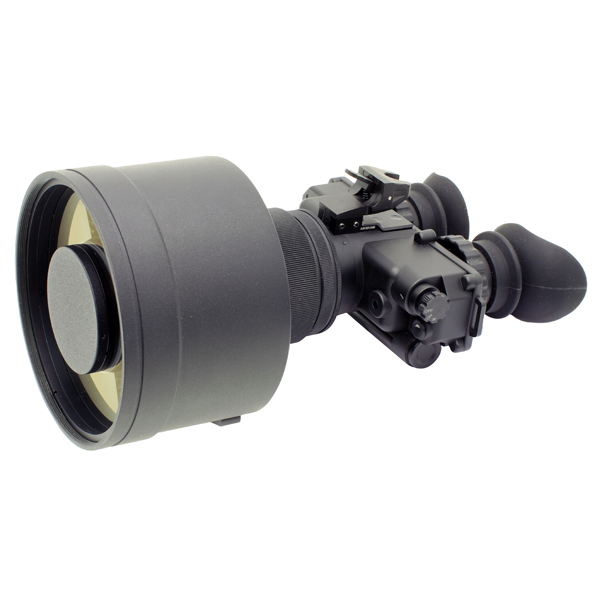

The NVS 7-3AG night vision goggle has been proven in deployments in conflict zones and by peacekeepers around the world. It utilizes an advanced auto-gated, Gen 3 image intensifier tube, has a built-in IR illuminator, auto shutoff mechanism and is fully MIL-SPEC. Fitted with an optional 3x, 4x, 5x and 8x lens, this advanced goggle can be easily converted to a long range night vision binocular, and with a full range of additional accessories, the NVS 7 series is among the world’s most versatile night vision devices.
| Battle ready |
| Superior optics |
| Easy to use |
| Long battery life |
| Auto-Gated Intensifier Tube |
| Image Intensifier Tube (IIT) | |
|
Generation |
3 |
|
Photocathode material |
GaAs |
|
IIT resolution, minimum (lp/mm) |
64 |
|
Signal to noise ratio, minimum |
25 |
| Optics | |
|
Magnification (x) |
1 |
|
Field of view (°) |
40 |
|
Objective F# |
1.2 |
|
Objective focal length (mm) |
27.5 |
|
Focus range (m) |
0.25 – ∞ |
|
Eye relief (mm) |
25 |
|
Diopter adjustment range |
+ 2.5 to -2.5 |
| Mechanics, Electronics & Environmental | |
|
Dimensions (mm) |
160x160x65 |
|
Weight without batteries (g) |
560 |
| Interpupillary distance (mm) | 60-70 |
|
Built-in IR illuminator |
Yes |
|
Battery type |
2x AA |
|
Reverse polarity protection |
Yes |
|
IR operation indicator |
Yes |
|
Low battery indicator |
Yes |
|
Automatic brightness control |
Yes |
|
Automatic shut-off system |
Yes |
|
Battery life (hours) |
40 |
|
Operating temperature range (°C) |
-40 to +55 |
|
Storage temperature range (°C) |
-45 to +55 |
|
Waterproofing |
MIL-STD-810G |
