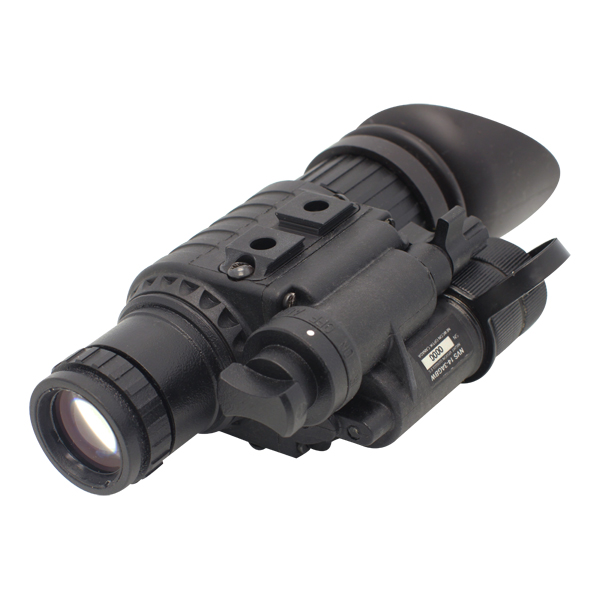

The NVS 14-3AGBW auto-gated has been proven in deployments in conflict zones and by peacekeepers around the world. It utilizes an advanced black and white Gen 3 image intensifier tube, is fully auto-gated and has a manual gain control system, built-in IR illuminator, auto shutoff mechanism and is fully MIL-SPEC. The NVS 14 series monoculars are among the smallest and lightest products of their kind. Each model can be handheld as well as weapon, head or helmet-mounted. With optional lens attachments that turn the monoculars into a 3x or 5x night vision sight as well as a full range of additional accessories, the NVS 14 series is among the world’s most versatile night vision devices.
Battle ready |
Superior optics |
Easy to use |
Custom NVS Bridge |
Manual Gain Adjustment |
IIT | |
Generation |
3 |
Photocathode material |
GaAs |
IIT resolution, minimum (lp/mm) |
64 |
Signal to noise ratio, minimum |
25 |
Field of merit, minimum |
1600 |
Auto-gating | Yes |
Black & white phosphor | Yes |
Optics | |
Magnification (x) |
1 |
Field of view (°) |
40 |
Objective F# |
1.2 |
Objective focal length (mm) |
25 |
Focus range (m) |
0.25 – ∞ |
Eye relief (mm) |
25 |
Diopter adjustment range |
-6 to +5 |
Mechanics, Electronics & Environmental | |
Dimensions (mm) |
114x68x49 |
Weight without batteries (g) |
287 |
Built-in IR illuminator |
Yes |
Battery type |
1x AA or 1xCR123 |
Reverse polarity protection |
Yes |
IR operation indicator |
Yes |
Automatic shut-off system |
Yes |
Upright shut-off system |
Yes |
Battery life (hours) |
40 |
Operating temperature range (°C) |
-50 to +55 |
Storage temperature range (°C) |
-50 to +70 |
Waterproofing |
MIL-STD-810G |
Waterproofing GCS Upgrade |
20m, 30min |

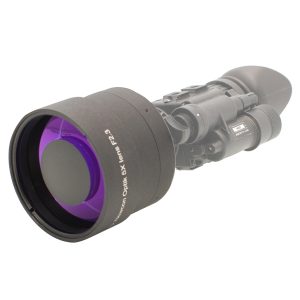

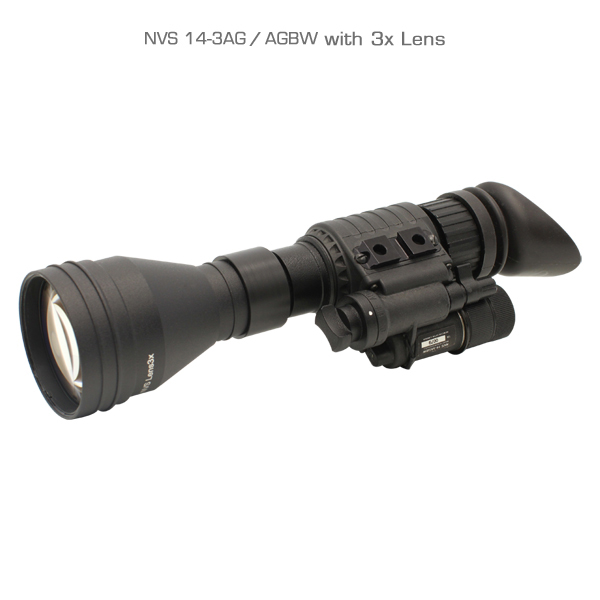

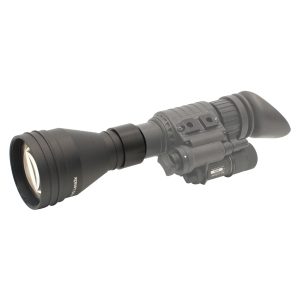

NVS 3x Lens | NVS 5x Lens | NVS SW |

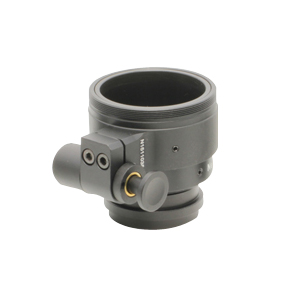

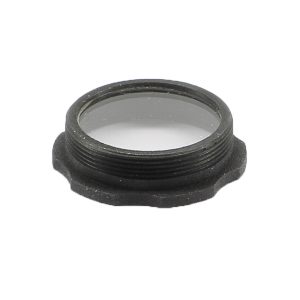

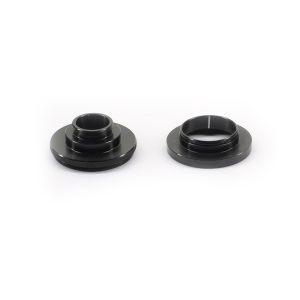

NVS U Coupler | NVS Cam/Video | NVS DS |

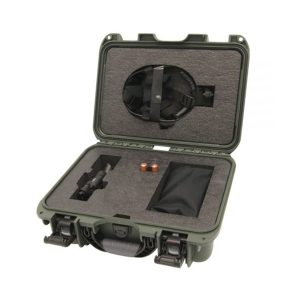

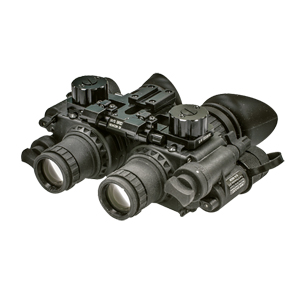

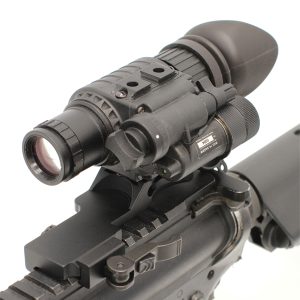

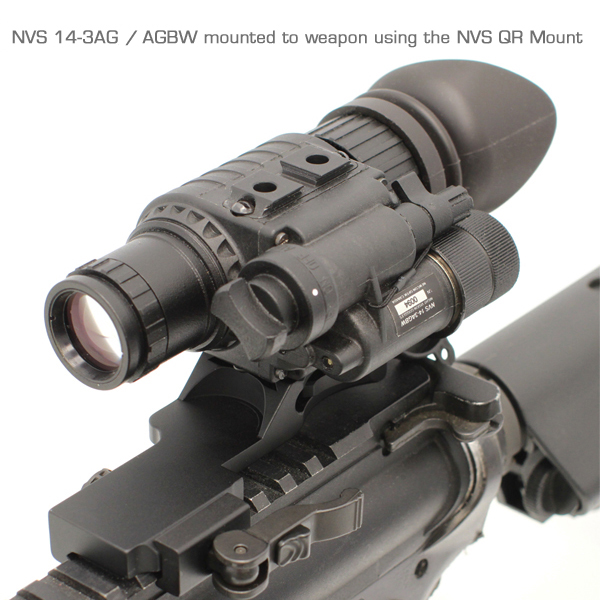

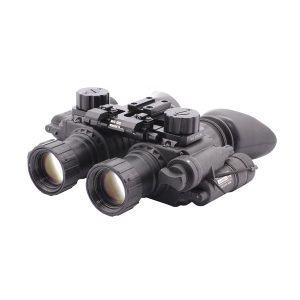

NVS Bridge | NVS 14 / NV 207-G2 Hard Case | NVS QR Mount |

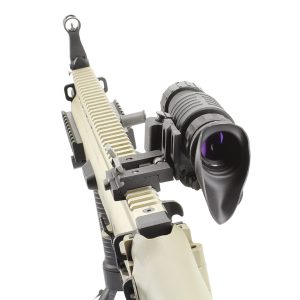

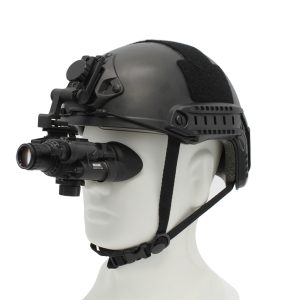

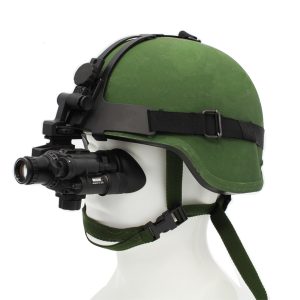

NVS H Mount | NVS S Mount | HDS 3x Magnifier |

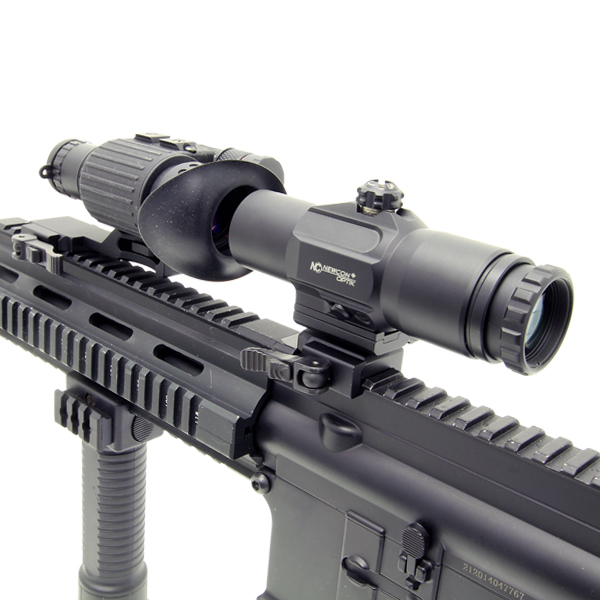

HDS 5x Magnifier |
