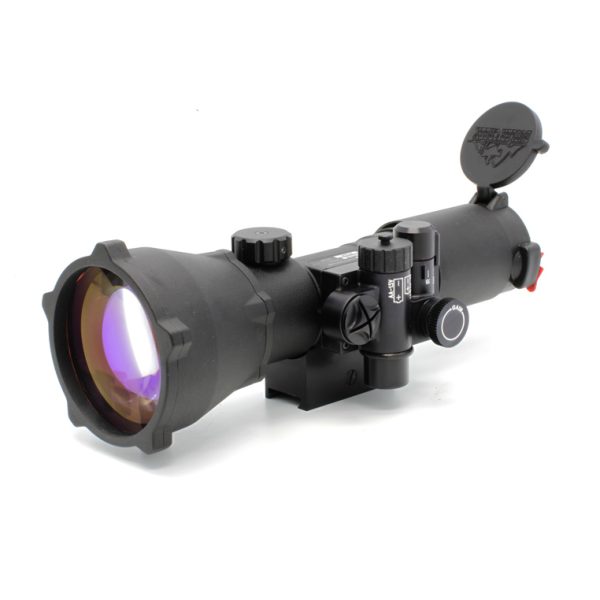

NVS 27M

The NVS 27M is Newcon Optik’s most advanced night vision clip-on to date and represents a significant improvement on other clip-on systems currently available. Utilizing any of Newcon Optik’s AG or AGBW IIT systems, this high-resolution unit is designed to mount in front of virtually any daytime riflescope. It differs from the competition in many ways, but primarily in its compatibility with day sight magnifications between 1x and 20x. As military and police shooters continue to use higher magnification day sights, this compatibility range provides a significant advantage in the field, enabling the use of most, if not all, of a given day sight’s magnification capability.

The NVS 27M was designed by shooters, and its extra wide field of view, manual gain control system and extended target detection range make it the world’s most complete night vision clip-on system.

Battle ready
No re-zeroing required
Easy to operate
QR mount system
IIT

Generation

3

Photocathode material

GaAs

IIT resolution, minimum (lp/mm)

64

Figure of merit, minimum

1600

Signal to noise ratio, minimum

25

Mean time to failure (hours) 10,000
Photocathode sensitivity, minimum (μA/lm) 1800
Auto-gating Yes

Auto-gating with black & white phosphor

Optional

 Automatic Brightness Control Yes
Optics

Magnification (x)

1

Field of view (°)

13

Objective F#

1.5

Objective focal length (mm)

78

Focus range (m)

10 to ∞

Magnification compatibility, recommended (x)

1 – 20

Mechanics, Electronics & Environmental

Dimensions (mm)

220x95x73

Weight without batteries or objective lens cap (g)

934

Mount system

QR Mount

Height from the rail to the optical axis (mm) 42
Height from the rail to the optical axis (inches) 1.65
IR illuminator Optional

Battery type

1x AA or 1x CR123

Battery life (hours)

50

Low battery indicator Yes

Operating temperature range (°C)

-45 to +65

Storage temperature range (°C)

-50 to +70

Waterproofing

MIL-STD-810G

Environmental protection compliance

MIL-STD-810G

Boresight retention Permanent
Boresight adjustment Not required
