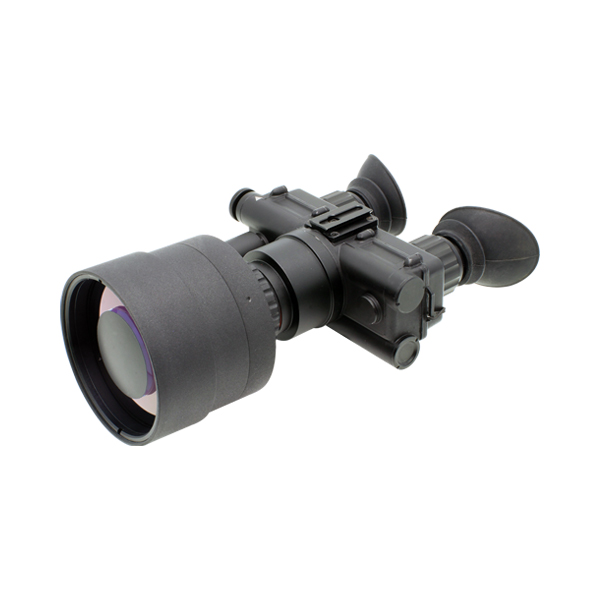

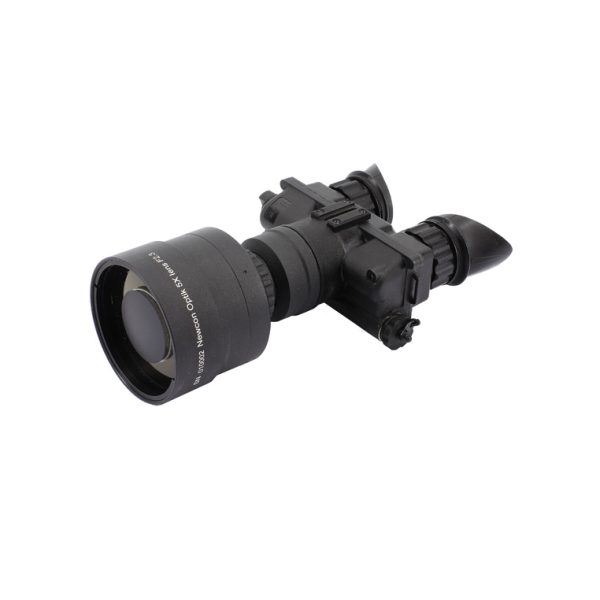

Based on the popular NVS 7 night vision goggles series, the NVS 7 binocular series models are suitable for defence, marine and SAR operations that take place in the world’s darkest tactical environments. Available in 4x, 5x and 8x magnification configurations, there is a binocular model for virtually any detection, recognition and identification requirement. The NVS 7-3/5xAG provides an excellent visibility range while remaining compact due to its catadioptric lens design.
| Battle ready |
| Superior optics |
| Easy to use |
| Long battery life |
| IIT | |
|
Generation |
3 |
|
Photocathode material |
GaAs |
|
IIT resolution, minimum (lp/mm) |
64 |
| Signal to noise ratio, minimum | 25 |
| Optics | |
|
Magnification (x) |
5 |
|
Field of view (°) |
8 |
|
Objective F# |
2.3 |
|
Objective focal length (mm) |
130 |
|
Focus range (m) |
10 – ∞ |
|
Eye relief (mm) |
25 |
|
Diopter adjustment range |
– 6.. + 5 |
| Mechanics, Electronics & Environmental | |
|
Dimensions (mm) |
210x150x80 |
|
Weight without batteries (g) |
930 |
| Interpupillary distance (mm) | 56 – 72 |
|
Built-in IR illuminator |
Yes |
|
Battery type |
2x AA |
| Reverse polarity protection | Yes |
| IR operation indicator | Yes |
| Low battery indicator | Yes |
| Automatic brightness control | Yes |
|
Battery life (hours) |
60 |
|
Operating temperature range (°C) |
-40 to +55 |
|
Storage temperature range (°C) |
-45 to +60 |
|
Waterproofing |
MIL-STD-810 |
