| Battle ready |
| Superior optics |
| Easy to use |
| Long battery life |

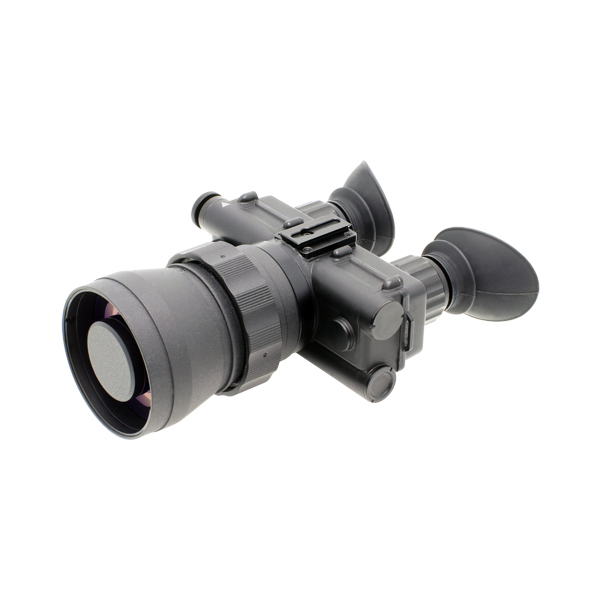

Based on the popular NVS 7 night vision goggles series, the NVS 7-3/4xAG is suitable for defence, marine and SAR operations that take place in the world’s darkest tactical environments. Available in 4x, 5x and 8x magnification configurations, there is a binocular model for virtually any detection, recognition and identification requirement. The NVS 7-3/4xAG is the smallest and lightest handheld night vision binocular in its class, due to its unique catadioptric lens, which dramatically reduces its size and weight profile relative to other 4x devices.
| Battle ready |
| Superior optics |
| Easy to use |
| Long battery life |
| IIT | |
|
Generation |
3 |
|
Photocathode material |
GaAs |
|
IIT resolution, minimum (lp/mm) |
64 |
|
Signal to noise ratio, minimum |
25 |
| Optics | |
|
Magnification (x) |
4 |
|
Field of view (°) |
10 |
|
Objective F# |
2.0 |
|
Objective focal length (mm) |
115 |
|
Focus range (m) |
10 – ∞ |
|
Eye relief (mm) |
25 |
|
Diopter adjustment range |
– 5.. + 5 |
| Mechanics, Electronics & Environmental | |
|
Dimensions (mm) |
175x150x70 |
|
Weight without batteries (g) |
815 |
| Interpupillary distance (mm) | 56 – 72 |
|
Built-in IR illuminator |
Yes |
|
Battery type |
2x AA |
| Reverse polarity protection | Yes |
| IR operation indicator | Yes |
| Low battery indicator | Yes |
| Automatic brightness control | Yes |
|
Battery life (hours) |
60 |
|
Operating temperature range (°C) |
-40 to +55 |
|
Storage temperature range (°C) |
-45 to +60 |
|
Waterproofing |
MIL-STD-810 |
