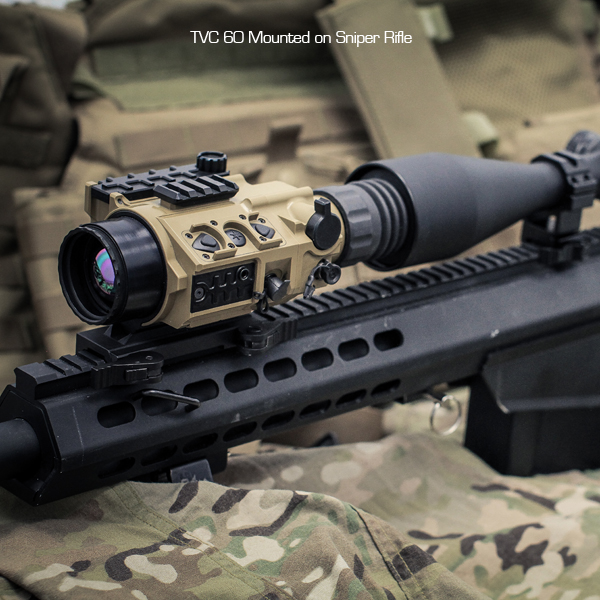

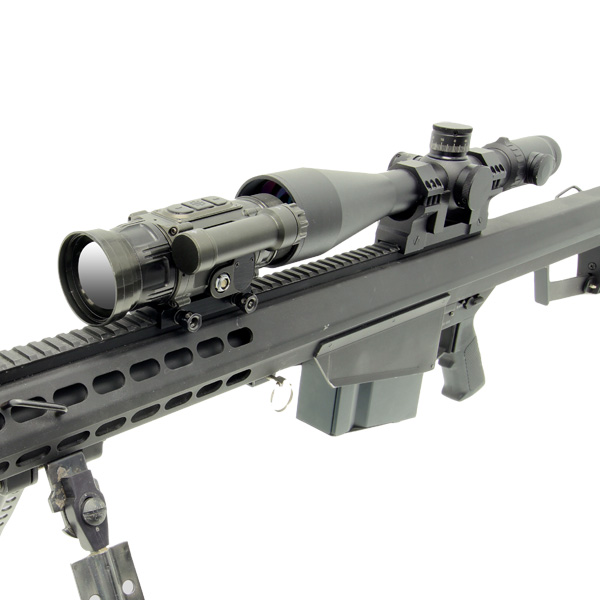

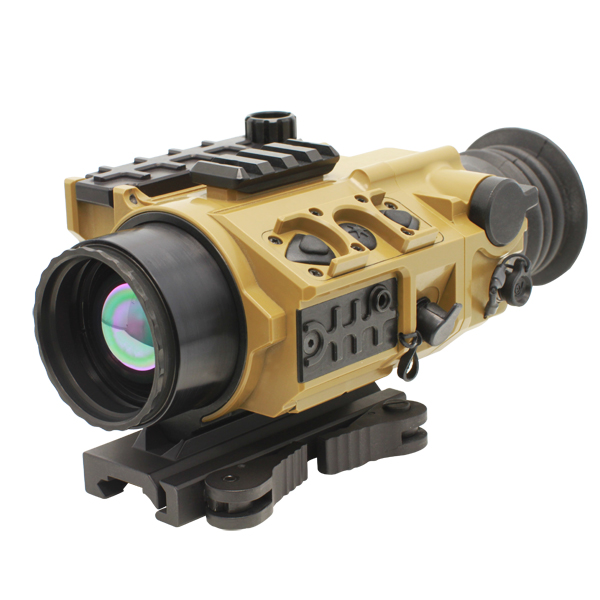

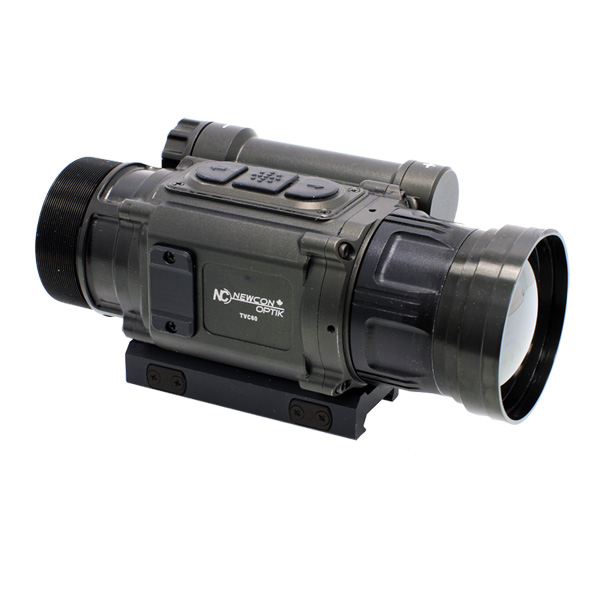

The TVC 60 is a clip-on thermal weapon sight designed to be used in conjunction with a magnified day optic. When in use, the shooter relies on the zeroing of the day optic and does not need to re-zero when attaching or detaching the unit.
The TVC 60 utilizes an uncooled thermal sensor that allows for the detection of camouflaged targets at long range. Equipped with a video output, the image captured by the TVC 60 can be viewed in real time by friendly forces, recorded and transmitted.
Multiple image polarities and colour schemes, adjustable contrast and variable digital magnification all contribute to making the TVC 60 a valuable addition to any sniper’s kit.
Thermal Clip-On Sight
|
Sensor |
|
|
Resolution (pixels) |
640×512 |
|
Frame rate (Hz) |
50 |
|
Pixel size (um) |
12 |
|
NETD (mK) |
< 40 |
|
Detection/Recognition of tank target (m) |
6000/1800/900 |
| Detection/ Recognition of human target (m) | 2600/800/400 |
|
Optics |
|
| Display type | OLED |
|
Display resolution |
1920×1080 |
|
Magnification |
1X |
|
Zoom |
2X/PIP/4X |
|
Objective focal length (mm) |
50 |
|
Objective F number |
1.1 |
|
Field of view (°) |
8.7×7 |
|
Daytime scope compatibility |
1x to 12x |
|
Mechanics, Electronics & Environmental |
|
|
Dimensions (mm) |
156x80x67 |
|
Weight with mount and no batteries (g) |
630 |
|
Onboard recorder |
128G |
|
Wifi(optional) |
YES |
|
Battery type |
1x 18650 |
|
Power supply |
6-12V |
|
Video output |
Via Ethernet port |
|
Battery life (hours) |
4 |
|
Operating Temperature (°C) |
-40 to +60 |
|
Storage temperature (°C) |
-50 to +70 |
|
Shock resistance |
9000J |
|
Weapon mounting system |
MIL-STD-1913 |
|
Weapon compatibility |
Assault rifles, Sniper rifles |
*Maximum Detection/Recognition/Identification to human-sized target
